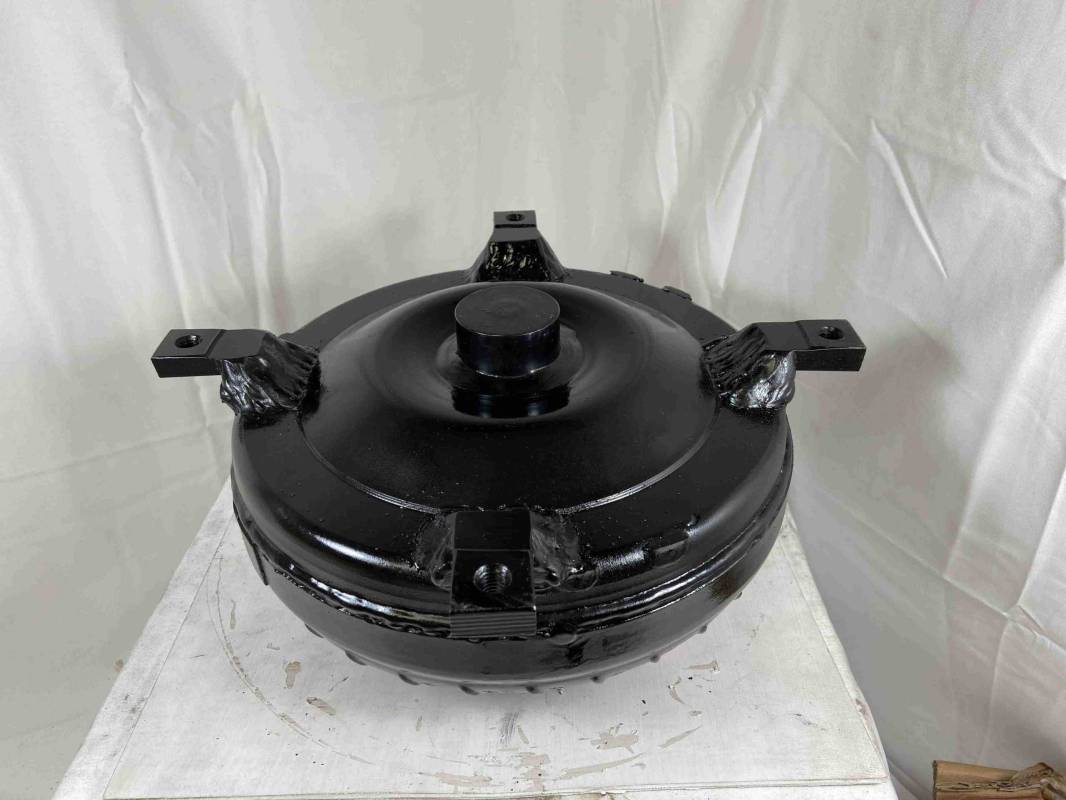

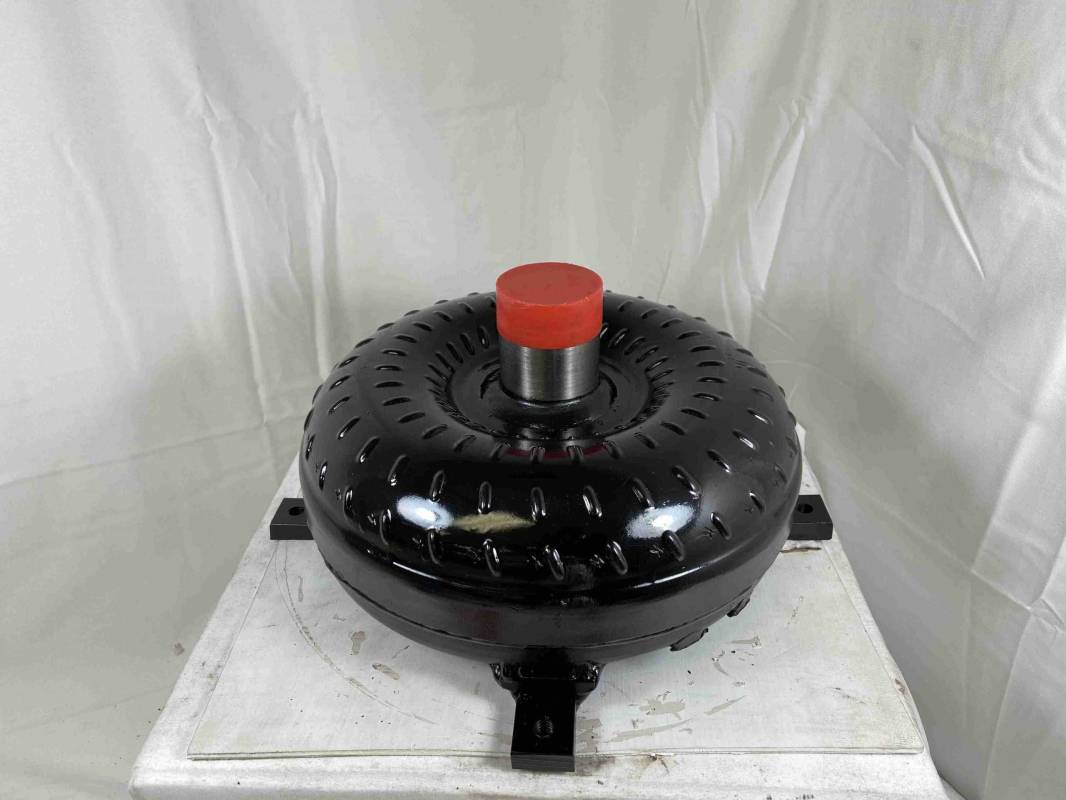

ACC 26032 C6 FE 1.848 Pilot Street Bandit Series 22-2,800 RPM Ford Torque Converter

ACC Boss Hog Street Bandit Ford C6 Torque Converter

2200-2800 Stall

Ford
C6
FE Motors – BIG Pilot – 1.848
Part Number 26032
STREET BANDIT SERIES
Super Lightweight Converter
Stall Range: 2,200 – 2,800 RPM
Great Driving Characteristics
9.6 inch Core
Bolt Circle: 11 7/16 inches
31 Spline Turbine Hub Precision CNC Machined
Count the Tops of Each Tooth on the Smaller Shaft
Built to 5 7/8 inch Tall
Use the 164 Tooth Flywheel
Hardened Chrome Moley Impeller Hub
Torrington Style Incased Bearings
Modified Extreme Duty Stator
1.848 inch Crank Pilot Precision CNC Machined
Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
NO – Anti-Balloon Plates
Fins are 4 corner Tac Welded or Furnace-Brazed
Leak & Pressure Tested
Digitally Balanced
Quality Inspections at Every Step
For Choppy Cams and Lightweight vehicles
TIP : Use Old School Type F Transmission Fluid For Best Results
TIP : Always Use an Additional Transmission Cooler
TIP : Use Blue Loctite

” MADE IN THE USA “

* NOTE : ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup.
