CP Carrillo Forged Piston & Gasket Kit 05-12 Yamaha YZ250F 13.5:1 STD Bore Qty 1

CPP CPK1034C
Limited Supply: only 1 remaining
Pricing: $229.99
Qty:
Free Shipping!

Description

CP Carrillo Powersports Forged Piston & Gasket Kit

2005-2012 Yamaha YZ250F

Part Number
CPK1034C
Year
2005-2012
Make
Yamaha
Model
YZ250F
C/R
13.5:1
Bore
77mm (250cc)
Size
Standard Bore
Type
Forged Piston & Gasket Kit

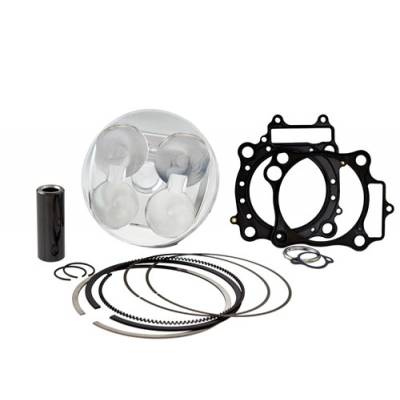

CP Pistons CPK piston kits come complete with a piston, wrist pin, locks, rings, and gasket. The anti-detonation grooves, also known as contact reduction grooves, protect the top ring by disrupting detonation waves. These grooves also limit the piston/cylinder contact during high temperatures and rpm. The featured accumulator groove is a V-shape machined into the second ring to collect excess blowby between the top and second rings. The accumulator groove also collects residual gasses during combustion and alleviates top ring flutter, while increasing ring seal. Other features, such as double pin oilers, in conjunction with their dual fed reservoir, add twice the amount of oil from the cylinder wall to the wrist pin. CP wrist pins have fine grooves that are intrinsically engraved into the product surface at the time of machining. These grooves are transformed into micro-dimple indentations to act as oil reservoirs, and the oil that would normally drain away through the grooves on an untreated product still remains in the dimples. X-forgings minimize friction and reduce weight without compromising strength. CPK piston kits go above and beyond in both quality and dependability.

Details

  • CPP CPK1034C
  • CPP CPK1034C
  • Carillo Industries
  • Available
  • New
