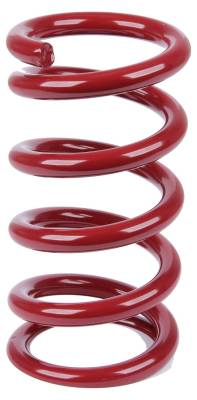

Eibach 0950.550.0500 5-1/2" X 9-1/2" 500 lb. Front Coil Spring

EIB 0950.550.0500
Limited Supply: only 1 remaining
Pricing: $79.00


Eibach 0950.550.0500 Front Race IMCA Coil Spring GM Metric 5.5x9.5 500lbs/in

Eibach uses the worlds finest quality, chrome silicon steel wire to produce coil springs with maximum travel and minimum weight. Eibach Springs are metric sized and, therefore, not limited to the SAE sized wire used in the production of many of the springs currently on the market. Eibach Springs are cold formed on CNC machinery, insuring precise tolerances on spring rates and free height, as well as longer life expectancy. Eibach Springs are heat tempered, shot peened, pre-set, and again tempered for maximum stress resistance. During a final process, they are phosphate treated and red powder coated with a very durable epoxy coating for a great looking finish tha resists chipping and provides maximum protection from corrosion. All springs are imprinted with an Eibach logo and part number for assurance of quality. Eibach Springs are guaranteed to remain within 3% rate and height for the life of the spring.

  • Ultra-Lightweight for Reduced Unsprung Mass
  • Maximum Deflection in Combination with Smallest Block Heights
  • Exceptional Block Resistance and Durability
  • Precision Tolerances - The Tightest in the Industry
  • Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
  • Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
  • Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
  • Each Spring Individually Tested and Rated
  • Eibach Springs Lifetime Warranty
Type Length ID Rate Block Height Travel Load at Block Height Weight
Conventional Front 9.5 5.5 500 3.26 6.24 3117 5.77


  • EIB 0950.550.0500
  • EIB 0950.550.0500
  • Eibach Springs
  • Available
  • New
