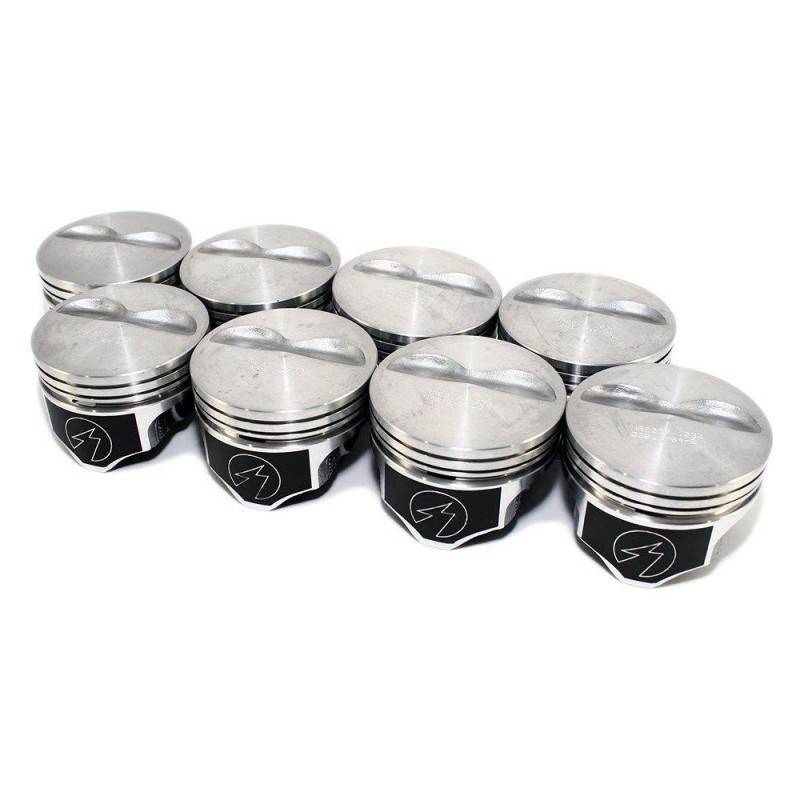

Sealed Power Hypereutectic Pistons | Standard Small Block Chevy 383 C.I. | #H860CP

FMP H860CP
Limited Supply: only 6 remaining
Availability: MUST BE PURCHASED IN SETS OF 8
Pricing: $189.97
Qty:
Free Shipping!

Description





Sealed Power Hypereutectic Pistons - Small Block Chevy

Part # Cubic Inch

Compression

64cc | 76cc

Dome Rod Length Press/Float Ring Size Approximate Weight Price per Set
H860CP 383 10.2 | 9.1 Flat 5.7 F 5/64; 3/16 577 $188.72
H624CP 383 11.7 | 10.2 .100 5.7 F 5/64; 3/16 521 $170.00
H635CP 383 12.6 | 10.9 .200 5.7 F 5/64; 3/16 536 $191.92

#H860CP Specifications

Bore (in): 4.000 in.

Bore (mm): 101.600mm

Piston Style: Flat top; with two valve reliefs

Piston Material: Hypereutectic aluminum

Compression Distance (in): 1.425 in.

Dome Height (in): Flat

Piston Head Volume (cc): +5.00cc

Wrist Pin Style: Press-fit or floating

Pin Diameter (in): 0.928 in.

Piston Ring Thickness: 5/64 in. x 5/64 in. x 3/16 in.

Quantity: Sold as a set of 8.



Details

  • FMP H860CP
  • FMP H860CP
  • Speed Pro
  • Available
  • MUST BE PURCHASED IN SETS OF 8
  • New
